1 Ejector Hydraulic BMC Injection Molding Machine Vertical JTT-550 For Precise Production

Name: 1 Ejector Hydraulic BMC Injection Molding Machine Vertical JTT550 For Precise Production
Brand: JINTONG
Price: 40 USD

Buy cheap 1 Ejector Hydraulic BMC Injection Molding Machine Vertical JTT-550 For Precise Production product

Place of Origin : Guangdong, China

Model Number : JTT-550 BMC

Brand Name : JINTONG

Packaging Details : plastic film packing for BMC bakelite Injection Molding Machine JTT-550 BMC

Supply Ability : 600 Piece/Pieces per Month BMC bakelite Injection Molding Machine JTT-550 BMC

Price : $40,000.00 - $50,000.00/pieces

Plastic Processed : BMC

Condition : New

Style : VERTICAL

Plasticizing Capacity(g/s) : 200

Mold Height(mm) : 210 - 400 mm

Ejector Number : 1

Ejector Stroke(mm) : 45 mm

Ejector Force(kN) : 13 kN

Theoretical Shot Volume(cm³) : 176 cm³

Injection Rate (g/s) : 90 g/s

Machine Type : Hydraulic

Injection Weight (g) : 160 g

Screw Speed (rpm) : 0 - 215 rpm

Screw diameter (mm) : 40 mm

Screw L/D Ratio : 25

Distance between Tie Bars : 510MM

Weight (KG) : 2300 kg

Type : Other

Open Stroke(mm) : 400 mm

Power (kW) : 12 kW

Warranty : 1 Year

Key Selling Points : Easy to Operate

Applicable Industries : Manufacturing Plant

Showroom Location : None

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : Bearing, Motor, PLC, Pressure vessel

Injection Weight : 80-141G

Injection Rate : 64-113CM3/S

Opening Stroke : 250MM

screw diameter : 30mm 35mm 40mm

screw stroke : 135mm

Product name : BMC bakelite Injection Molding Machine JTT-550 BMC

rotary table diameter : 1080mm

mold size : 450*325mm

max daylight : 450/510mm

After Warranty Service : Video technical support

Port : SHENZHEN

Contact Now

1 Ejector Hydraulic BMC Injection Molding Machine JTT-550 For Precise Production

Product Description

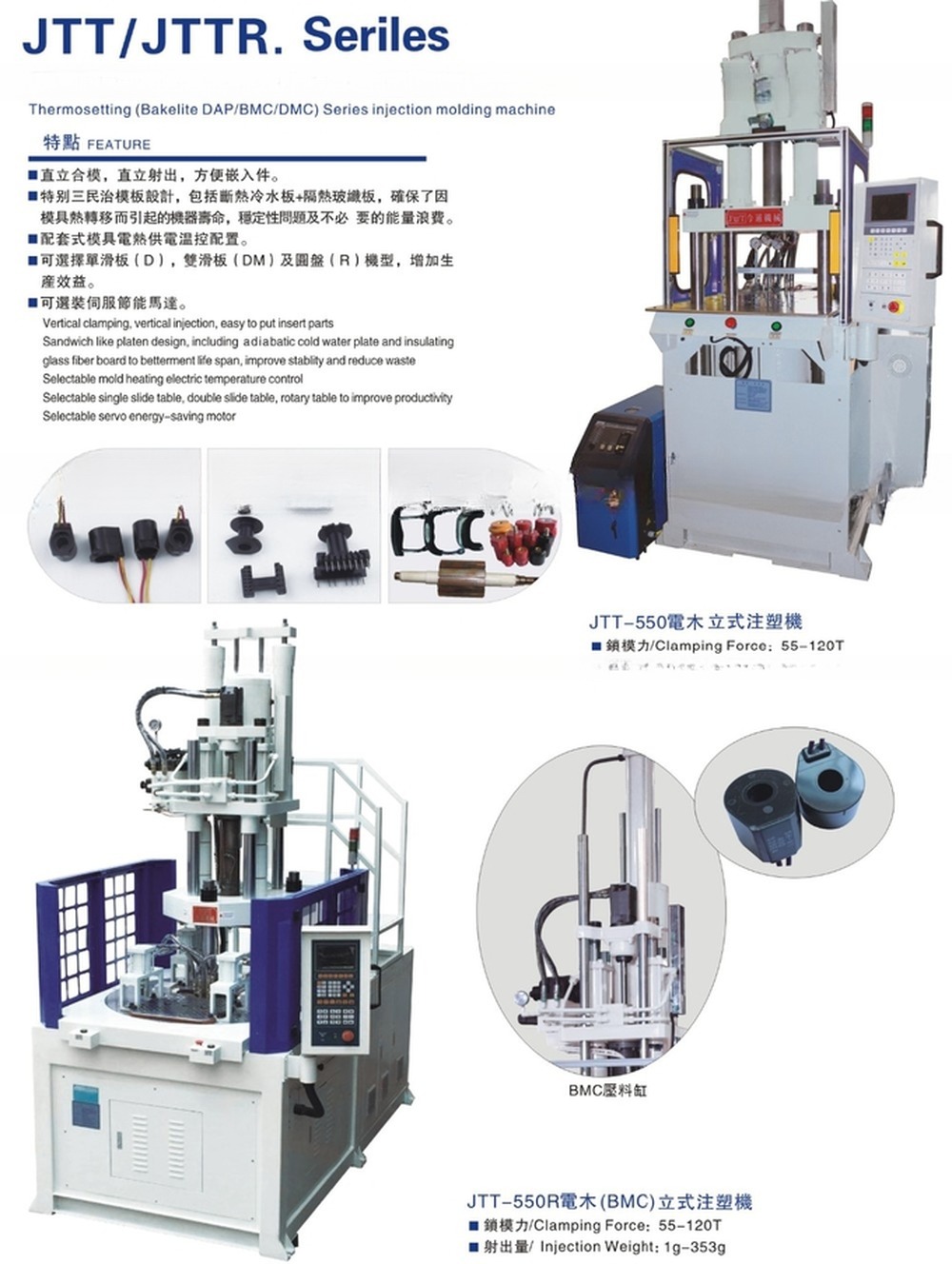

BMC bakelite Injection Molding Machine JTT-550 BMC

Clamping Force: 55T

Injection Weight: 80-141g

Vertical clamping, vertical injection, easy to put insert parts
Sandwich like platen design, including adiabatic cold water plate and insulating glass fiber board to betterment life span, improve stablity and reduce waste
Selectable mold heating electric temperature control
Selectable single slide table, double slide table, rotary table to improve productivity
Selectable servo energy-saving motor

1 Ejector Hydraulic BMC Injection Molding Machine Vertical JTT-550 For Precise Production

Main Features

Vertical clamping, vertical injection
Easy to set torque , speed, deceleration distance and stand number segmentation
Computer programme control rotary table direction , forward-rotating, reverse-rotating, forward and reverse alternative rotating.
Optional energy-saving motor

Certifications

Detailed Images

Our Service

PRODUCT ADVANTAGE

Energy-saving: save 30% energy compared to similar products by using SIFU pump system

High efficiency: SIFU motor have max speed 2200/min to increase oil pump output and improve more than 15% productivity speed

Low heating: save 55% cooling water quantity at least compared to similar products

Low noise: optimize motor working condition with imported bearing and oil pump to reduce 15-20db working noise

Precision: use completely close-cycle control with pressure sensor and motor rotary encoder to improve product consistency

SERVICE ADVANTAGE

17 years of customer service experience and summarizing customer feedback, Jintong develop a systematic and standardized service process, and also establish 24 hour response mechanism to wensure timely solve customers problems and offer perfect service to customers as soon as possible.
