Rotary Table Vertical Injection Moulding Machine with 200T Clamping Force High Productivity and 1 Year Warranty

Name: Rotary Table Vertical Injection Moulding Machine with 200T Clamping Force High Productivity and 1 Year Warranty
Brand: JINTONG
Price: 62 USD

Buy cheap Rotary Table Vertical Injection Moulding Machine with 200T Clamping Force High Productivity and 1 Year Warranty product

Place of Origin : China

Model Number : JTT-2000R

Brand Name : JINTONG

Certification : ISO9001 CE

MOQ : 1 piece

Price : $62,000-66,000 / piece

Clamping Force : 200T

Injection Weight : 456-662g

Ejector Stroke : 75 mm

Ejector Force : 48 kN

Shot Volume : 678 cm³

Injection Rate : 212 g/s

Screw Diameter : 60 mm

Tie Bar Distance : 760mm

Machine Weight : 12000 kg

Open Stroke : 600 mm

Power : 44.3 kW

Screw Stroke : 260mm

Opening Force : 22.4T

Rotary Table Diameter : 1500mm

Machine Dimensions : 3.0*2.2*3.6m

Contact Now

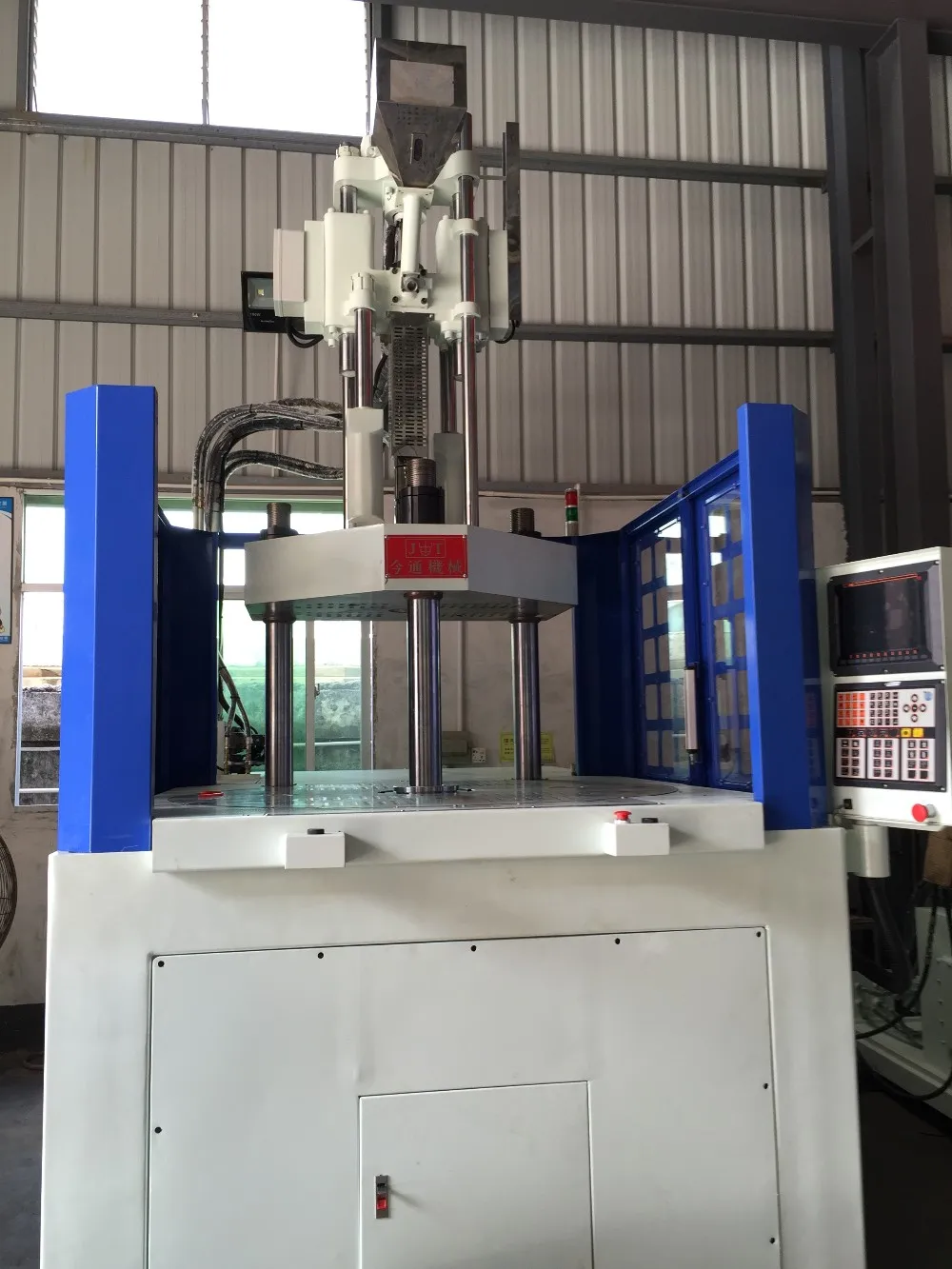

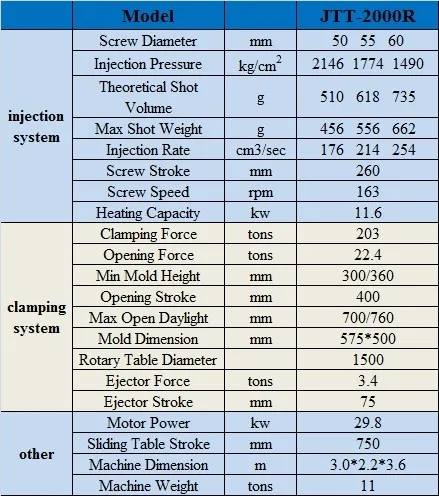

Rotary table vertical plastic injection moulding machine 200T JTT-2000R

Clamping Force: 200T

Injection Weight: 456-662g

Vertical clamping, vertical injection

Easy to set torque , speed, deceleration distance and stand number segmentation

Computer programme control rotary table direction , forward-rotating, reverse-rotating, forward and reverse alternative rotating.

Optional energy-saving motor

Rotary Table Vertical Injection Moulding Machine with 200T Clamping Force High Productivity and 1 Year Warranty

Main Features

1) vertical clamping, vertical injection,

2) clamping force, injection weight and shot speed can be changed according to actual demand.

3) 2 stations, 3 stations , multi-station(one up die, two or four down die), easy for operate insert parts, improve productivity

PRODUCT ADVANTAGE

Energy-saving: save 30% energy compared to similar products by using SIFU pump system

High efficiency: SIFU motor have max speed 2200/min to increase oil pump output and improve more than 15% productivity speed

Low heating: save 55% cooling water quantity at least compared to similar products

Low noise: optimize motor working condition with imported bearing and oil pump to reduce 15-20db working noise

Precision: use completely close-cycle control with pressure sensor and motor rotary encoder to improve product consistency

SERVICE ADVANTAGE

17 years of customer service experience and summarizing customer feedback, Jintong develop a systematic and standardized service process, and also establish 24 hour response mechanism to wensure timely solve customers problems and offer perfect service to customers as soon as possible.
